Bondi Mixed-Use Residence

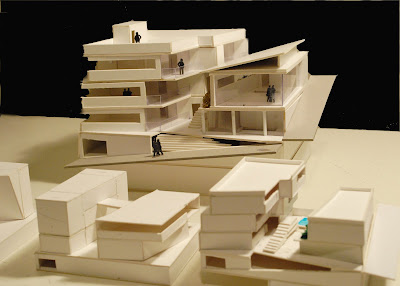

Model

Construction detail

Construction Detail - Gym Hall 1:10

Model













































Drawing























The buildings are mainly built with timber wall structure. But timber trusses are needed to support the long span of the large gym hall, and thicker columns are also needed. For the roof, Cedar cladding is used. For the wall, white-stained plywood panels are cladded to increase the lumosity.

Construction Detail - Rooms 1:20

Final Model

East facade:

West facade:




















































The cafe area with columns:


















































The gym hall and the observatory room:

The large gym hall:

The observatory deck outside the offices:

Coogee Bay Community Centre

Aims:
1. to create a threshold between the beach and the dense buildings, private and public space
2. as a centre for the Coogee community

Threshold:
1. transparency between buildings and the beach
2. transformation private and public spaces


Shape:
1. inspired by the pattern of the feature of the site >> one side surround by dense buildings and another side opened to the plain oval beach
2. roof >> two continuous layers intersecting >> meaning beach and the buildings intersecting
2. connecting the grand stand (not stand alone anymore)
3. wave feature of beach (responds to the beach)
4. responds to the coastal line nearby

Transparency:
1. strong (visual) connection to the beach
2. glazing gym hall >> open to the oval side

vertical / horizontal >> movement
perpendicular >> transparent

Materiality:
1. grand stand >> change the facade
2. timber >> related to natural
3. white stained plywood panels >> to increase the luminosity & similar to physical appearance of sand
4. cedar shingles >> will weather in shades and the sculptural volumes of the roof will be enriched and subtly exaggerated
5. property of wave & coastal line >> shown in the shape of the building

Features:
1. visual connection to the oval
2. trans - solid - trans
3. Skeleton / bones
4. toilets / changing room >> from all sides
5. passage to toilets from small gym hall
6. café >> open
7. stand
8. observatory room
9. open terrace

Drawings

Concept drawings:



















Plan with site 1:200

Plans 1:200

Elevations and Sections

















Structure Grid 1:200
















Room Perspectives















Upper Left : The open terrace on level 2 provides a good view to the oval, with a floating roof
Upper Right: The observatory deck outside the office
Bottom Left: The open cafe and the foyer
Bottom Right: The stand looking at the gym halls

Some amendments are made after the feedback after the final submission, and thank you for the feedbacks.

Submission 3

On the Site


















Model

East elevation:

A transparency is created facing the oval in the eastern facade. And the cafe is very open for customers coming from all direction.

Ground Level Plan












The toilets - changing room is in a square grid and positioning in the centre, for people coming from different directions. The solid wall for the toilets also maintain a balance between the transparency around.

Level 1 Plan

The small rooms situated in level 2 acted like a skeleton/bones to connect the two big boxes (head and tail) together.

Level 2 Plan

Roof Plan












West elevation








East elevation







Section A








Section B
